Visomax Inspection & Lighting Systems

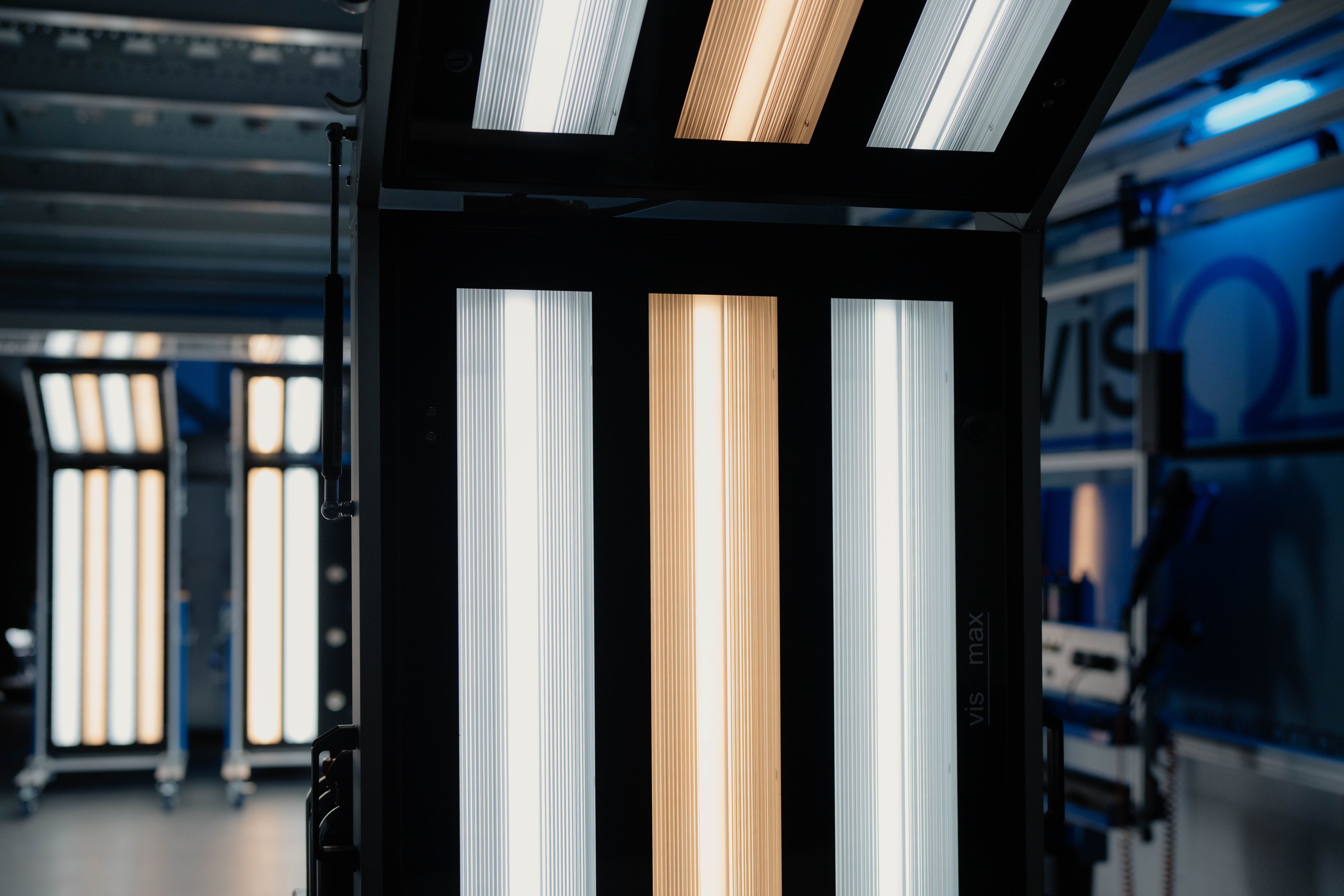

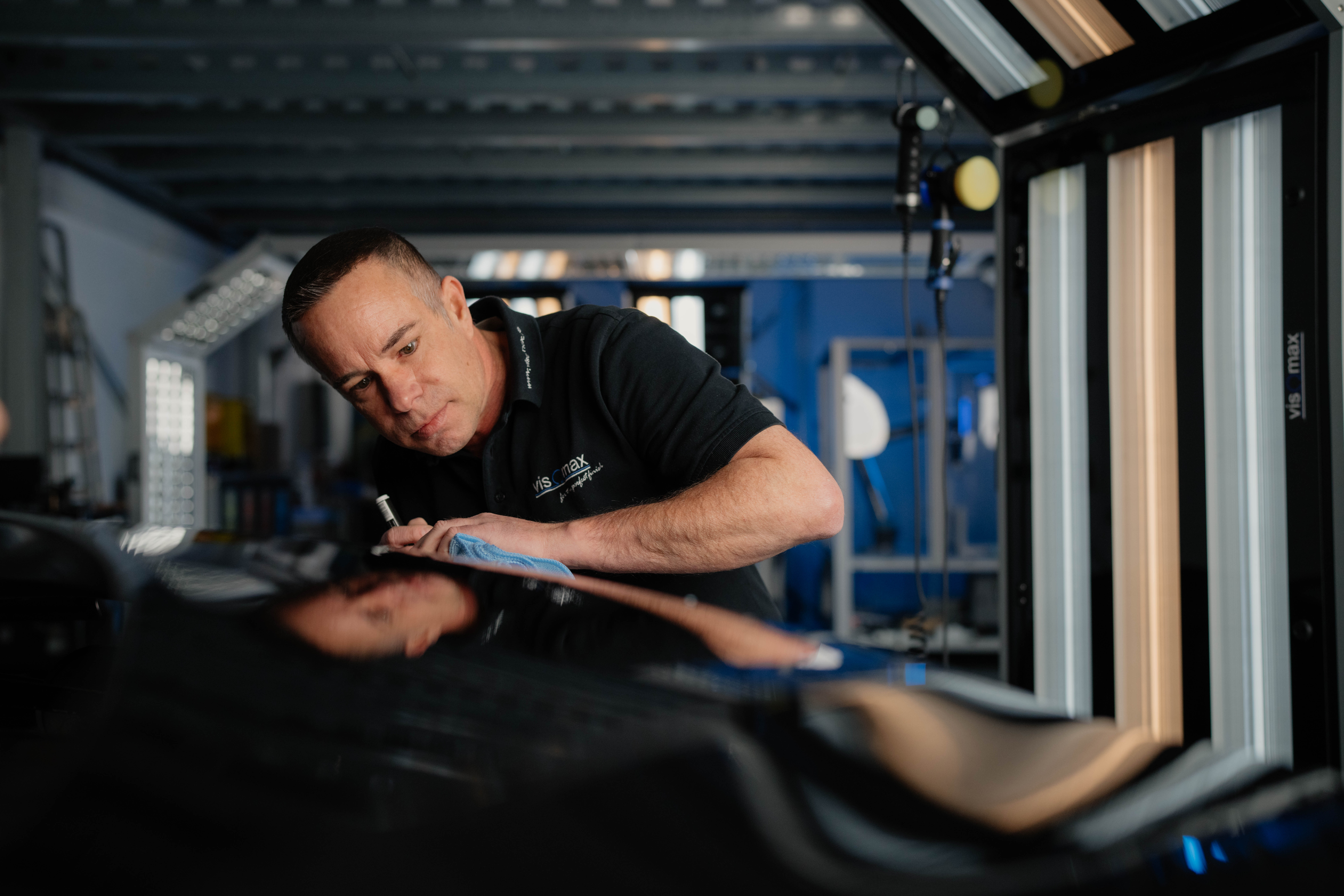

The perfect lighting at your workplace is a key component for process safety. Our inspection & lighting systems are the perfect solutions to detect faults and deviations at an early stage while processing all kinds of painted surfaces. The vertically mounted lighting units are continuously dimmable and it is possible to adapt them with different color temperatures regarding the needs due to the color of paint or the gloss level of the body. This means that the process safety at your workplace is granted by this excellent illumination.
Mobile Light Walls ECO
PZ-MLW-ECO
Mobile Light Wall ECO
Depth/Width 600 mm
Height 1770 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 45 kg
Power 232 W
PZ-MLW-ECO-L
Mobile Light Wall ECO LED
Depth/Width 600 mm
Height 2.390 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 45 kg
Power 128 W
PZ-MLW-ECO-45
Mobile Light Wall ECO 45°
Depth/Width 600 mm
Height 2,390 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 65 kg
Power 304 W
PZ-MLW-ECO-45-L
Mobile Light Wall ECO 45° LED
Depth/Width 600 mm
Height 2,390 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 65 kg
Power 168 W
Mobile Light Walls
PZ-MLW-01
Mobile Light Wall
Depth/Width 2000 mm
Height 1830 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 78 kg
Power 700 W
Control types
PZ-FB-DIM-01 dimmable remote
PZ-WKL-Sch-01 warm and cold light, separately controllable
Further Options
PZ-SD-01 4x 230 V – shockproof socket
PZ-DLA-01 connection for compressed air
PZ-MaHa-01 tool support made of stainless steel
PZ-MLW-01-45
Mobile Light Wall 45°
Length 2070 mm
Depth/Width 1000 mm
Height 2450 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 Hz)
Weight 128 kg
Power 912 W
Control types
PZ-FB-DIM-01 dimmable remote
PZ-WKL-Sch-01 warm and cold light, separately controllable
Further Options
PZ-SD-01 4x 230 V – shockproof socket
PZ-DLA-01 connection for compressed air
PZ-MaHa-01 tool support made of stainless steel
Finish Station
PZ-MLW-ECO-45-WS01
Visomax Finish Station,
Tool package – orbital
Depth/Width 790 mm
Height 2390 mm
Rolls 4 (2 with brakes)
Netzanschluss 230 Volt (AC/50 Hz)
Weight 112 kg
Power 304 W
Further Options:
PZ-MLW-ECO-45-WS02
Visomax Finish Station,
Tool package – rotary
PZ-MLW-ECO-45-WS03
Visomax Finish Station,
Tool package – polisher
PZ-MLW-ECO-45-WS04
Visomax Finish Station,
Tool package – orbital, industrial use
PZ-MLW-ECO-45-WS05
Visomax Finish Station,
Tool package – polisher + sander
PZ-MLW-ECO-45-WS06
Finish Station, tool package – orbital – pneumatic
Depth/Width 780 mm
Height 2390 mm
Rolls 4 (2 with brakes)
Mains connection 230 Volt (AC/50 – Hz)
Weight 112 kg
Power 304 W
Further Options:
PZ-MLW-ECO-45-WS22
Visomax Finish Station,
without tools
